C#开发驱动程序安装类设计思想总结

相关软件相关文章发表评论 来源：本站整理时间：2011/3/31 23:27:50字体大小：A-A+

作者：佚名点击：576次评论：0次标签： 驱动程序

301摄像头万能驱动程序
  • 类型：硬件驱动大小：1.8M语言：中文 评分：6.3
  • 标签：
立即下载

回忆刚进公司那会儿，手头的第一个工作就是完成虚拟键盘，也就是通过驱动程序向键盘端口写入数据，这份活至今记忆犹新，那会儿写的是个过滤驱动程序，也就是将我的虚拟设备绑定到真实的键盘设备上，当驱动程序编译完成以后，我也总是通过下面的这个工具来安装驱动程序，

每编译好一次就使用这个工具重新安装驱动一次，然后通过 DbgView 来打印消息，

那会儿还真傻，为了弄出这么个虚拟键盘，都不晓得安装了驱动多少回，

直到后来，当驱动程序完成以后，就需要部署驱动程序了，在网上找了很多资料，

大部分也都是通过 INF 文件来实现，而对于 WDM 驱动程序，则还可以通过服务控制台来实现安装，

模模糊糊还记得当初就是通过这个服务控制台来实现驱动程序服务的安装的。

当初的实现是这样的，通过编写一个 DLL 来调用服务控制台 API 从而完成驱动程序的安装，

然后再在 C# (应用程序是使用的 C# WinForm ，驱动程序必须和这个应用程序通信)中通过平台调用，

访问这个 DLL ，这样就可以实现驱动程序的动态加载以及动态启动服务和停止服务等等操作了。

而在下面呢，我也算是对以前写的那个 DLL 做一个总结，将其总结为一个 C# 类，这样以后用起来会更加方便。

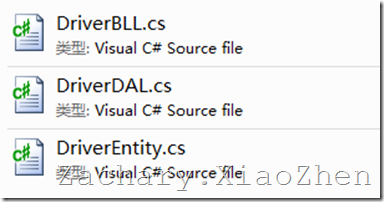

整个的类，我按分层的思想将其分为三块（其实这里将其这样划分不是非常合适）：

DriverEntity.cs

这里即是所谓的实体层，在该类下面呢，主要包括的是将要在 DriverBLL 中使用到的一些常量数据，

这些数据呢包括服务的类型，服务启动类型，当然也包括了将会使用到的一些结构类型等等信息。

using System;
using System.Runtime.InteropServices;

namespace TaskManager.Entity
{
    public class DriverEntity
    {
        // Service Types (Bit Mask)
        public static readonly UInt32 SERVICE_KERNEL_DRIVER          = 0x00000001;
        public static readonly UInt32 SERVICE_FILE_SYSTEM_DRIVER     = 0x00000002;
        public static readonly UInt32 SERVICE_ADAPTER                = 0x00000004;
        public static readonly UInt32 SERVICE_RECOGNIZER_DRIVER      = 0x00000008;
        public static readonly UInt32 SERVICE_WIN32_OWN_PROCESS      = 0x00000010;
        public static readonly UInt32 SERVICE_WIN32_SHARE_PROCESS    = 0x00000020;
        public static readonly UInt32 SERVICE_INTERACTIVE_PROCESS    = 0x00000100;
        public static readonly UInt32 SERVICE_WIN32                  =
            SERVICE_WIN32_OWN_PROCESS | SERVICE_WIN32_SHARE_PROCESS;

        public static readonly UInt32 SERVICE_DRIVER                 =
            SERVICE_KERNEL_DRIVER | SERVICE_FILE_SYSTEM_DRIVER | SERVICE_RECOGNIZER_DRIVER;

        public static readonly UInt32 SERVICE_TYPE_ALL               =
            SERVICE_WIN32 | SERVICE_ADAPTER | SERVICE_DRIVER | SERVICE_INTERACTIVE_PROCESS;

        // Start Type
        public static readonly UInt32 SERVICE_BOOT_START            = 0x00000000;
        public static readonly UInt32 SERVICE_SYSTEM_START          = 0x00000001;
        public static readonly UInt32 SERVICE_AUTO_START            = 0x00000002;
        public static readonly UInt32 SERVICE_DEMAND_START          = 0x00000003;
        public static readonly UInt32 SERVICE_DISABLED              = 0x00000004;

        // Error control type
        public static readonly UInt32 SERVICE_ERROR_IGNORE          = 0x00000000;
        public static readonly UInt32 SERVICE_ERROR_NORMAL          = 0x00000001;
        public static readonly UInt32 SERVICE_ERROR_SEVERE          = 0x00000002;
        public static readonly UInt32 SERVICE_ERROR_CRITICAL        = 0x00000003;

        // Controls
        public static readonly UInt32 SERVICE_CONTROL_STOP          = 0x00000001;
        public static readonly UInt32 SERVICE_CONTROL_PAUSE         = 0x00000002;
        public static readonly UInt32 SERVICE_CONTROL_CONTINUE      = 0x00000003;
        public static readonly UInt32 SERVICE_CONTROL_INTERROGATE   = 0x00000004;
        public static readonly UInt32 SERVICE_CONTROL_SHUTDOWN      = 0x00000005;

        // Service object specific access type
        public static readonly UInt32 SERVICE_QUERY_CONFIG          = 0x0001;
        public static readonly UInt32 SERVICE_CHANGE_CONFIG         = 0x0002;
        public static readonly UInt32 SERVICE_QUERY_STATUS          = 0x0004;
        public static readonly UInt32 SERVICE_ENUMERATE_DEPENDENTS  = 0x0008;
        public static readonly UInt32 SERVICE_START                 = 0x0010;
        public static readonly UInt32 SERVICE_STOP                  = 0x0020;

        public static readonly UInt32 SERVICE_ALL_ACCESS            = 0xF01FF;

        // Service Control Manager object specific access types
        public static readonly UInt32 SC_MANAGER_ALL_ACCESS         = 0xF003F;
        public static readonly UInt32 SC_MANAGER_CREATE_SERVICE     = 0x0002;
        public static readonly UInt32 SC_MANAGER_CONNECT            = 0x0001;
        public static readonly UInt32 SC_MANAGER_ENUMERATE_SERVICE  = 0x0004;
        public static readonly UInt32 SC_MANAGER_LOCK               = 0x0008;
        public static readonly UInt32 SC_MANAGER_MODIFY_BOOT_CONFIG = 0x0020;
        public static readonly UInt32 SC_MANAGER_QUERY_LOCK_STATUS  = 0x0010;

        // These are the generic rights.
        public static readonly UInt32 GENERIC_READ                  = 0x80000000;
        public static readonly UInt32 GENERIC_WRITE                 = 0x40000000;
        public static readonly UInt32 GENERIC_EXECUTE               = 0x20000000;
        public static readonly UInt32 GENERIC_ALL                   = 0x10000000;

        //Driver Device Name
        public static readonly String TaskManager_Driver_Nt_Device_Name     = "\\Device\\TaskManagerDevice";
        public static readonly String TaskManager_Driver_Dos_Device_Name    = "\\DosDevices\\TaskManagerDevice";



        [StructLayout(LayoutKind.Sequential, CharSet = CharSet.Auto)]
        public struct SECURITY_ATTRIBUTES
        {
            public UInt32 nLength;
            public IntPtr lpSecurityDescriptor;
            public bool bInheritHandle;
        }

        [StructLayout(LayoutKind.Sequential, CharSet = CharSet.Auto)]
        public struct OVERLAPPED
        {
            public UInt32 Internal;
            public UInt32 InternalHigh;
            public UInt32 Offset;
            public UInt32 OffsetHigh;
            public IntPtr hEvent;
        }

        [StructLayout(LayoutKind.Sequential, CharSet = CharSet.Auto)]
        public struct SERVICE_STATUS
        {
            public UInt32 dwServiceType;
            public UInt32 dwCurrentState;
            public UInt32 dwControlsAccepted;
            public UInt32 dwWin32ExitCode;
            public UInt32 dwServiceSpecificExitCode;
            public UInt32 dwCheckPoint;
            public UInt32 dwWaitHint;
        }
    }
}

.csharpcode, .csharpcode pre { font-size: small; color: black; font-family: consolas, "Courier New", courier, monospace; background-color: #ffffff; /*white-space: pre;*/ } .csharpcode pre { margin: 0em; } .csharpcode .rem { color: #008000; } .csharpcode .kwrd { color: #0000ff; } .csharpcode .str { color: #006080; } .csharpcode .op { color: #0000c0; } .csharpcode .preproc { color: #cc6633; } .csharpcode .asp { background-color: #ffff00; } .csharpcode .html { color: #800000; } .csharpcode .attr { color: #ff0000; } .csharpcode .alt { background-color: #f4f4f4; width: 100%; margin: 0em; } .csharpcode .lnum { color: #606060; }

DriverDAL.cs

这个类即是所谓的数据访问层，

一般来说，数据访问层用在使用数据库的情况下比较合适，

但是在这里我将其抽象为只要是提供最基本的数据服务的 API ，我都将其放在数据访问层中，

所以这里主要是 C# 平台调用时，对于将要调用的 Win32 API 的一个声明，

其中包括了 CreateFile ，OpenService 等等 API 的声明。



using System;
using System.Runtime.InteropServices;
using TaskManager.Entity;

namespace TaskManager.DAL
{
    public class DriverDAL
    {
        [DllImport("kernel32.dll", CharSet = CharSet.Auto)]
        public static extern IntPtr CreateFile(
            String lpFileName,
            UInt32 dwDesiredAccess,
            UInt32 dwShareMode,
            ref DriverEntity.SECURITY_ATTRIBUTES lpSecurityAttributes,
            UInt32 dwCreationDisposition,
            UInt32 dwFlagsAndAttributes,
            IntPtr hTemplateFile
            );

        [DllImport("kernel32.dll", CharSet = CharSet.Auto)]
        public static extern bool WriteFile(
            IntPtr hFile,
            byte[] lpBuffer,
            UInt32 nNumberOfBytesToWrite,
            ref UInt32 lpNumberOfBytesWritten,
            ref DriverEntity.OVERLAPPED lpOverlapped
            );

        [DllImport("kernel32.dll", CharSet = CharSet.Auto)]
        public static extern bool DeviceIoControl(
            IntPtr hDevice,
            UInt32 dwIoControlCode,
            byte[] lpInBuffer,
            UInt32 nInBufferSize,
            byte[] lpOutBuffer,
            UInt32 nOutBufferSize,
            ref UInt32 lpBytesReturned,
            ref DriverEntity.OVERLAPPED lpOverlapped
            );

        [DllImport("kernel32.dll", CharSet = CharSet.Auto)]
        public static extern bool CloseHandle(
            IntPtr hObject
            );

        [DllImport("kernel32.dll", CharSet = CharSet.Auto)]
        public static extern IntPtr CreateEvent(
            ref DriverEntity.SECURITY_ATTRIBUTES lpEventAttributes,
            bool bManualReset,
            bool bInitialState,
            String lpName
            );

        [DllImport("kernel32.dll", CharSet = CharSet.Auto)]
        public static extern UInt32 WaitForSingleObject(
            IntPtr hHandle,
            UInt32 dwMilliseconds
            );

        [DllImport("kernel32.dll")]
        public static extern UInt32 GetLastError();


        [DllImport("advapi32.dll", CharSet = CharSet.Auto)]
        public static extern IntPtr OpenSCManager(
            String lpMachineName,
            String lpDatabaseName,
            UInt32 dwDesiredAccess
            );

        [DllImport("advapi32.dll", CharSet = CharSet.Auto)]
        public static extern IntPtr CreateService(
            IntPtr hSCManager,
            String lpServiceName,
            String lpDisplayName,
            UInt32 dwDesiredAccess,
            UInt32 dwServiceType,
            UInt32 dwStartType,
            UInt32 dwErrorControl,
            String lpBinaryPathName,
            String lpLoadOrderGroup,
            ref UInt32 lpdwTagId,
            String lpDependencies,
            String lpServiceStartName,
            String lpPassword
            );

        [DllImport("advapi32.dll", CharSet = CharSet.Auto)]
        public static extern bool CloseServiceHandle(
            IntPtr hSCObject
            );

        [DllImport("advapi32.dll", CharSet = CharSet.Auto)]
        public static extern bool StartService(
            IntPtr hService,
            UInt32 dwNumServiceArgs,
            String lpServiceArgVectors
            );


        [DllImport("advapi32.dll", CharSet = CharSet.Auto)]
        public static extern IntPtr OpenService(
            IntPtr hSCManager,
            String lpServiceName,
            UInt32 dwDesiredAccess
            );

        [DllImport("advapi32.dll", CharSet = CharSet.Auto)]
        public static extern bool DeleteService(
            IntPtr hService
            );

        [DllImport("advapi32.dll", CharSet = CharSet.Auto)]
        public static extern bool ControlService(
            IntPtr hService,
            UInt32 dwControl,
            ref DriverEntity.SERVICE_STATUS lpServiceStatus
            );
    }
}

.csharpcode, .csharpcode pre { font-size: small; color: black; font-family: consolas, "Courier New", courier, monospace; background-color: #ffffff; /*white-space: pre;*/ } .csharpcode pre { margin: 0em; } .csharpcode .rem { color: #008000; } .csharpcode .kwrd { color: #0000ff; } .csharpcode .str { color: #006080; } .csharpcode .op { color: #0000c0; } .csharpcode .preproc { color: #cc6633; } .csharpcode .asp { background-color: #ffff00; } .csharpcode .html { color: #800000; } .csharpcode .attr { color: #ff0000; } .csharpcode .alt { background-color: #f4f4f4; width: 100%; margin: 0em; } .csharpcode .lnum { color: #606060; }

DriverBLL.cs

这里就是所谓的业务逻辑层了，其实呢，说白了，其中包括几个重要的方法的实现，

比如启动驱动程序服务，停止驱动程序服务，安装启动程序，卸载驱动程序等方法的实现。

该类是为应用程序提供驱动程序安装功能的直接类。



using System;
using TaskManager.Entity;
using TaskManager.DAL;

namespace TaskManager.BLL
{
    public class DriverBLL
    {
        /// <summary>
        /// 启动驱动程序
        /// </summary>
        /// <param name="svcName"></param>
        /// <returns></returns>
        public bool StartDriver(String svcName)
        {
            IntPtr scManagerHandle;
            IntPtr schDriverService;

            //打开服务控制台管理器
            scManagerHandle = DriverDAL.OpenSCManager(null, null, DriverEntity.SC_MANAGER_CREATE_SERVICE);
            if (null == scManagerHandle || IntPtr.Zero == scManagerHandle)
            {
                return false;
            }

            //打开服务
            schDriverService = DriverDAL.OpenService(scManagerHandle, svcName, DriverEntity.SERVICE_ALL_ACCESS);
            if (null == schDriverService || IntPtr.Zero == schDriverService)
            {
                DriverDAL.CloseServiceHandle(scManagerHandle);
                return false;
            }

            if (false == DriverDAL.StartService(schDriverService, 0, null))
            {
                DriverDAL.CloseServiceHandle(schDriverService);
                DriverDAL.CloseServiceHandle(scManagerHandle);
                return false;
            }

            DriverDAL.CloseServiceHandle(schDriverService);
            DriverDAL.CloseServiceHandle(scManagerHandle);

            return true;
        }


        /// <summary>
        /// 停止驱动程序服务
        /// </summary>
        /// <param name="svcName"></param>
        /// <returns></returns>
        public bool StopDriver(String svcName)
        {
            IntPtr scManagerHandle;
            IntPtr schDriverService;

            DriverEntity.SERVICE_STATUS serviceStatus;

            //打开服务控制台管理器
            scManagerHandle = DriverDAL.OpenSCManager(null, null, DriverEntity.SC_MANAGER_CREATE_SERVICE);
            if (null == scManagerHandle || IntPtr.Zero == scManagerHandle)
            {
                return false;
            }

            //打开服务
            schDriverService = DriverDAL.OpenService(scManagerHandle, svcName, DriverEntity.SERVICE_ALL_ACCESS);
            if (null == schDriverService || IntPtr.Zero == schDriverService)
            {
                DriverDAL.CloseServiceHandle(scManagerHandle);
                return false;
            }

            serviceStatus = new DriverEntity.SERVICE_STATUS();

            //停止服务
            if (false == DriverDAL.ControlService(schDriverService, DriverEntity.SERVICE_CONTROL_STOP, ref serviceStatus))
            {
                DriverDAL.CloseServiceHandle(schDriverService);
                DriverDAL.CloseServiceHandle(scManagerHandle);

                return false;
            }
            else
            {
                DriverDAL.CloseServiceHandle(schDriverService);
                DriverDAL.CloseServiceHandle(scManagerHandle);

                return true;
            }
        }


        /// <summary>
        /// 判断驱动程序是否已经安装
        /// </summary>
        /// <param name="svcName"></param>
        /// <returns></returns>
        public bool DriverIsInstalled(string svcName)
        {
            IntPtr scManagerHandle;
            IntPtr schDriverService;

            //打开服务控制台管理器
            scManagerHandle = DriverDAL.OpenSCManager(null, null, DriverEntity.SC_MANAGER_ALL_ACCESS);
            if (null == scManagerHandle || IntPtr.Zero == scManagerHandle)
            {
                return false;
            }

            //打开驱动程序服务
            schDriverService = DriverDAL.OpenService(scManagerHandle, svcName, DriverEntity.SERVICE_ALL_ACCESS);
            if (null == schDriverService || IntPtr.Zero == schDriverService)
            {
                DriverDAL.CloseServiceHandle(scManagerHandle);
                return false;
            }

            DriverDAL.CloseServiceHandle(schDriverService);
            DriverDAL.CloseServiceHandle(scManagerHandle);

            return true;
        }


        /// <summary>
        /// 安装驱动程序服务
        /// </summary>
        /// <param name="svcDriverPath"></param>
        /// <param name="svcDriverName"></param>
        /// <param name="svcDisplayName"></param>
        /// <returns></returns>
        public bool DriverInstall(String svcDriverPath, String svcDriverName, String svcDisplayName)
        {
            UInt32 lpdwTagId;
            IntPtr scManagerHandle;
            IntPtr schDriverService;

            //打开服务控制台管理器
            scManagerHandle = DriverDAL.OpenSCManager(null, null, DriverEntity.SC_MANAGER_CREATE_SERVICE);
            if (null == scManagerHandle || IntPtr.Zero == scManagerHandle)
            {
                return false;
            }
            if (DriverIsInstalled(svcDriverName) == false)
            {
                lpdwTagId = 0;
                schDriverService = DriverDAL.CreateService(
                    scManagerHandle, svcDriverName, svcDisplayName,
                    DriverEntity.SERVICE_ALL_ACCESS,
                    DriverEntity.SERVICE_KERNEL_DRIVER,
                    DriverEntity.SERVICE_DEMAND_START,
                    DriverEntity.SERVICE_ERROR_NORMAL,
                    svcDriverPath, null,
                    ref lpdwTagId,
                    null, null, null
                    );

                DriverDAL.CloseServiceHandle(scManagerHandle);
                if (null == schDriverService || IntPtr.Zero == schDriverService)
                {
                    return false;
                }
                else
                {
                    return true;
                }
            }

            DriverDAL.CloseServiceHandle(scManagerHandle);
            return true;
        }


        /// <summary>
        /// 卸载驱动程序服务
        /// </summary>
        /// <param name="svcName"></param>
        public void DriverUnInstall(String svcName)
        {
            IntPtr scManagerHandle;
            IntPtr schDriverService;

            //打开服务控制台管理器
            scManagerHandle = DriverDAL.OpenSCManager(null, null, DriverEntity.SC_MANAGER_ALL_ACCESS);
            if (null == scManagerHandle || IntPtr.Zero == scManagerHandle)
            {
                return;
            }

            //打开驱动程序服务
            schDriverService = DriverDAL.OpenService(scManagerHandle, svcName, DriverEntity.SERVICE_ALL_ACCESS);
            if (null == schDriverService || IntPtr.Zero == schDriverService)
            {
                DriverDAL.CloseServiceHandle(scManagerHandle);
                return;
            }
            else
            {
                DriverDAL.DeleteService(schDriverService);

                DriverDAL.CloseServiceHandle(schDriverService);
                DriverDAL.CloseServiceHandle(scManagerHandle);
            }
        }
    }
}

.csharpcode, .csharpcode pre { font-size: small; color: black; font-family: consolas, "Courier New", courier, monospace; background-color: #ffffff; /*white-space: pre;*/ } .csharpcode pre { margin: 0em; } .csharpcode .rem { color: #008000; } .csharpcode .kwrd { color: #0000ff; } .csharpcode .str { color: #006080; } .csharpcode .op { color: #0000c0; } .csharpcode .preproc { color: #cc6633; } .csharpcode .asp { background-color: #ffff00; } .csharpcode .html { color: #800000; } .csharpcode .attr { color: #ff0000; } .csharpcode .alt { background-color: #f4f4f4; width: 100%; margin: 0em; } .csharpcode .lnum { color: #606060; }

上面的这个类呢，说实在的，对于没用过驱动程序的来说，屁用没一点，

但是如果某位也在烦恼驱动程序的安装的话，那么恭喜你，你中奖了 . . .

    万能显卡
    (240)万能显卡
    万能显卡驱动适用于所有显卡安装驱动所用，称之为万能显卡驱动。显卡驱动是硬件所对应的软件，你装电脑时那帮你装电脑的人不是给了你很多碟子的吗，那些就是驱动程序，其中必然有一张是显卡的驱动程序。先要确定你的显卡什么牌子型号的，如果记不得了，就打开机箱看那个竖插在主板上的较大板子一般显卡有很大的散热片或风扇上的型号品牌。如果是集成的显卡在主板上看不到前面说的那样的电路板，就看主板上的型号品牌，记下来。但是...更多>>

    相关文章

    12-07手机连接电脑驱动程序下载汇总 安卓手机驱动下载大全
    09-09win10显示器驱动程序已停止响应,并且已恢复是什么意思 怎么办
    11-17360驱动大师安装驱动程序/备份驱动程序图文教程 下载的驱动在哪里
    11-10win8.1系统驱动程序安装失败的解决办法 “数据无效”
    11-03笔记本装系统“缺少所需的cd/dvd驱动器设备驱动程序”解决方案
    03-25驱动程序调用：UMDF驱动程序开发教程
    12-01小米手机驱动程序安装教程
    07-31VS2008开发驱动程序环境搭配（VS2010 + WDK + VirtualDDK + VMwa
    12-17QQ电脑管家 支持硬件驱动程序的检测和安装
    11-11如何学习Windows驱动程序开发

    相关评论

    阅读本文后您有什么感想? 已有人给出评价!

    • 8 喜欢喜欢
    • 3 顶顶
    • 1 难过难过
    • 5 囧囧
    • 3 围观围观
    • 2 无聊无聊

    热门评论

    最新评论

    发表评论 查看所有评论(0)

    昵称:
    表情: 高兴 可 汗 我不要 害羞 好 下下下 送花 屎 亲亲
    字数: 0/500 (您的评论需要经过审核才能显示)
    推荐文章

    7月份 Tiobe 分布编程语言排行 C#位居第5位 利用WPF自己做的全文翻译小工具

    相关下载

    名称大小下载

    最新文章
