Asp.net 开发中Session是如何实现存储的？

(阿香婆硬盘维护工具)Ashampoo HDD Controlv3.00.50 绿色便携版

• 类型：磁盘工具大小：18.8M语言：中文 评分：5.0
• 标签：

立即下载

我们还是简单的来复习一下Session吧：Session的数据时保存在服务器端，并且每个客户端对应不同Session。那么Session究竟是如何保存，如何区分客服端的了？我们还是沿用以前的方法来讲吧，以一个demo开始：

protected void Page_Load(object sender, EventArgs e)
       {
           string name = this.Request["Name"];
           object sessionName = Session["Name"];
           if (string.IsNullOrEmpty(name) && sessionName==null)
           {
               Response.Write("Please Enter your name!");
           }
           else
           {
               if (sessionName == null)
               {
                   Session.Add("Name", name);
                   Response.Write("Set Session name and Session ID:"+Session.SessionID);
               }
               else
               {
                   Response.Write("Get Session Name and Session ID:"+ Session.SessionID);
               }
               Response.Write(" Name:" + name);
           }
       }

 假设我们的请求路径为http://localhost:18385/WebForm1.aspx?name=majiang

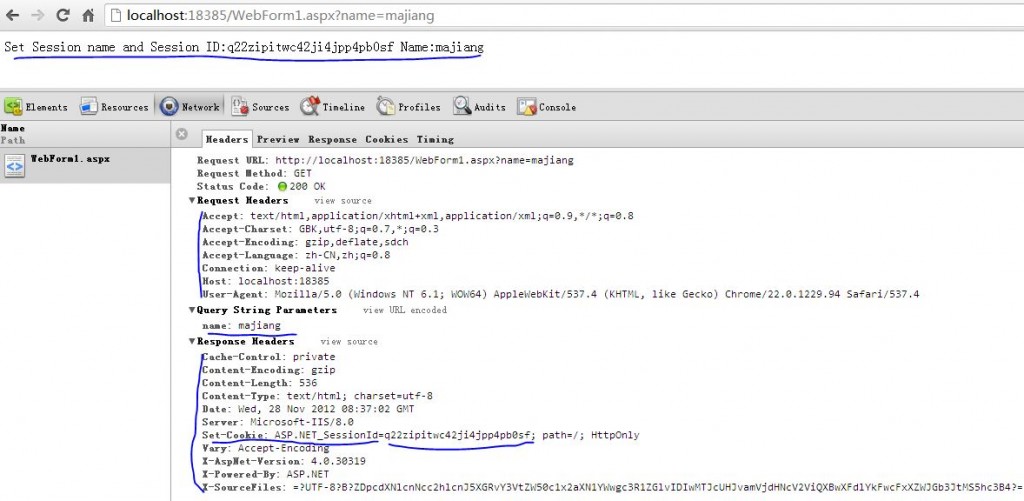

第一次请求数据如下：

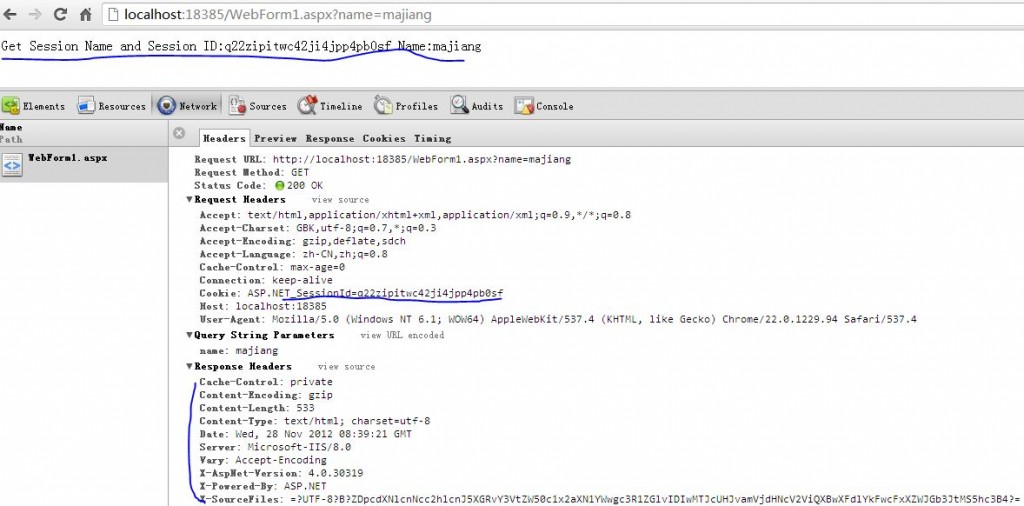

第二次请求数据了：

这里我们看见在第一次请求的返回头里面有一个ASP.NET_SessionId，在第二次请求过程中这个请求头里面也含有ASP.NET_SessionId，并且它的值刚好是Session.SessionID（我这里用的是asp.net4.5），我们可以猜测这个ASP.NET_SessionId就是用来区分不同的客户端请求。那么这个值是什么时候生成的又是什么时候输出的了？

首先我们需要知道我们用到的那个Session具体在什么地方定义的，其实它是定义于HttpContext的Session属性中，我们一般的page也只是调用这个属性而已。

public HttpSessionState Session
{
    get
    {
        if (this.HasWebSocketRequestTransitionCompleted)
        {
            return null;
        }
        if (this._sessionStateModule != null)
        {
            lock (this)
            {
                if (this._sessionStateModule != null)
                {
                    this._sessionStateModule.InitStateStoreItem(true);
                    this._sessionStateModule = null;
                }
            }
        }
        return (HttpSessionState) this.Items["AspSession"];
    }
}

这里用到一个_sessionStateModule的变量，那么究竟在什么地方操作它们的了？在HttpContext中有两个操作sessionStateModule方法如下：
  internal void AddDelayedHttpSessionState(SessionStateModule module)
    {
        if (this._sessionStateModule != null)
        {
            throw new HttpException(SR.GetString("Cant_have_multiple_session_module"));
        }
        this._sessionStateModule = module;
    }

    internal void RemoveDelayedHttpSessionState()
    {
        this._sessionStateModule = null;
    }

这两个方法干什么的我就不说了，它们是在什么地方调用的了。如果你开发过asp.net，那么你应该知道在SessionStateModule 类，它是一个IHttpModule的实现者专门用来管理Session的，在这个类中有一个InitModuleFromConfig方法，该方法主要是在该类的Init中调用，如丧我们来看看它的具体实现吧：

private void InitModuleFromConfig(HttpApplication app, SessionStateSection config) { if (config.Mode != SessionStateMode.Off) { app.AddOnAcquireRequestStateAsync(new BeginEventHandler(this.BeginAcquireState), new EndEventHandler(this.EndAcquireState)); app.ReleaseRequestState += new EventHandler(this.OnReleaseState); app.EndRequest += new EventHandler(this.OnEndRequest); this._partitionResolver = this.InitPartitionResolver(config); switch (config.Mode) { case SessionStateMode.InProc: if (HttpRuntime.UseIntegratedPipeline) { s_canSkipEndRequestCall = true; } this._store = new InProcSessionStateStore(); this._store.Initialize(null, null); break; case SessionStateMode.StateServer: if (HttpRuntime.UseIntegratedPipeline) { s_canSkipEndRequestCall = true; } this._store = new OutOfProcSessionStateStore(); ((OutOfProcSessionStateStore) this._store).Initialize(null, null, this._partitionResolver); break; case SessionStateMode.SQLServer: this._store = new SqlSessionStateStore(); ((SqlSessionStateStore) this._store).Initialize(null, null, this._partitionResolver); break; case SessionStateMode.Custom: this._store = this.InitCustomStore(config); break; } this._idManager = this.InitSessionIDManager(config); if (((config.Mode == SessionStateMode.InProc) || (config.Mode == SessionStateMode.StateServer)) && this._usingAspnetSessionIdManager) { this._ignoreImpersonation = true; } } }

这里主要是设置 this._store和  this._idManager 它们两个变量，其中 this._store的设置根据Session的存储类型不同设置为不同的实例，这里的存储方式有以下四种

public enum SessionStateMode
{
    Off,
    InProc,
    StateServer,
    SQLServer,
    Custom
}
默认的是SessionStateMode.InProc，所以默认的this._store是一个InProcSessionStateStore实例，而this._idManager默认是一个SessionIDManager实例。这个方法结束后我们的 this._store和  this._idManager这两个变量就已经有值了。在SessionStateModule类中还有一个很重要的方法 BeginAcquireState：

private IAsyncResult BeginAcquireState(object source, EventArgs e, AsyncCallback cb, object extraData) { IAsyncResult result; bool sessionStateItem = true; bool flag3 = false; this._acquireCalled = true; this._releaseCalled = false; this.ResetPerRequestFields(); this._rqContext = ((HttpApplication) source).Context; this._rqAr = new HttpAsyncResult(cb, extraData); this.ChangeImpersonation(this._rqContext, false); try { if (EtwTrace.IsTraceEnabled(4, 8)) { EtwTrace.Trace(EtwTraceType.ETW_TYPE_SESSION_DATA_BEGIN, this._rqContext.WorkerRequest); } this._store.InitializeRequest(this._rqContext); bool requiresSessionState = this._rqContext.RequiresSessionState; if (this._idManager.InitializeRequest(this._rqContext, false, out this._rqSupportSessionIdReissue)) { this._rqAr.Complete(true, null, null); if (EtwTrace.IsTraceEnabled(4, 8)) { EtwTrace.Trace(EtwTraceType.ETW_TYPE_SESSION_DATA_END, this._rqContext.WorkerRequest); } return this._rqAr; } if ((s_allowInProcOptimization && !s_sessionEverSet) && (!requiresSessionState || !((SessionIDManager) this._idManager).UseCookieless(this._rqContext))) { flag3 = true; } else { this._rqId = this._idManager.GetSessionID(this._rqContext); } if (!requiresSessionState) { if (this._rqId != null) { this._store.ResetItemTimeout(this._rqContext, this._rqId); } this._rqAr.Complete(true, null, null); if (EtwTrace.IsTraceEnabled(4, 8)) { EtwTrace.Trace(EtwTraceType.ETW_TYPE_SESSION_DATA_END, this._rqContext.WorkerRequest); } return this._rqAr; } this._rqExecutionTimeout = this._rqContext.Timeout; if (this._rqExecutionTimeout == DEFAULT_DBG_EXECUTION_TIMEOUT) { this._rqExecutionTimeout = s_configExecutionTimeout; } this._rqReadonly = this._rqContext.ReadOnlySessionState; if (this._rqId != null) { sessionStateItem = this.GetSessionStateItem(); } else if (!flag3) { bool flag4 = this.CreateSessionId(); this._rqIdNew = true; if (flag4) { if (s_configRegenerateExpiredSessionId) { this.CreateUninitializedSessionState(); } this._rqAr.Complete(true, null, null); if (EtwTrace.IsTraceEnabled(4, 8)) { EtwTrace.Trace(EtwTraceType.ETW_TYPE_SESSION_DATA_END, this._rqContext.WorkerRequest); } return this._rqAr; } } if (sessionStateItem) { this.CompleteAcquireState(); this._rqAr.Complete(true, null, null); } result = this._rqAr; } finally { this.RestoreImpersonation(); } return result; }

在这个方法中有以下3句比较重要

    this._rqId = this._idManager.GetSessionID(this._rqContext);
   sessionStateItem = this.GetSessionStateItem();
    this.CompleteAcquireState();

第一句获取SessionID，第二句货物SessionStateItem，第三句主要是调用一个CompleteAcquireState方法，而这个方法里面有一句  SessionStateUtility.AddDelayedHttpSessionStateToContext(this._rqContext, this);或则this.InitStateStoreItem(true); 这个方法主要对应一句

 SessionStateUtility.AddHttpSessionStateToContext(this._rqContext, this._rqSessionState);，在这个类中还有一个方法OnReleaseState里面有这么一句

 SessionStateUtility.RemoveHttpSessionStateFromContext(this._rqContext, delayed);

我们首先来可看看SessionStateUtility的AddHttpSessionStateToContext、RemoveHttpSessionStateFromContext方法的实现吧。

internal static void AddDelayedHttpSessionStateToContext(HttpContext context, SessionStateModule module){ context.AddDelayedHttpSessionState(module);}internal void AddDelayedHttpSessionState(SessionStateModule module){ if (this._sessionStateModule != null) { throw new HttpException(SR.GetString("Cant_have_multiple_session_module")); } this._sessionStateModule = module;}public static void AddHttpSessionStateToContext(HttpContext context, IHttpSessionState container) { HttpSessionState state = new HttpSessionState(container); try { context.Items.Add("AspSession", state); } catch (ArgumentException) { throw new HttpException(SR.GetString("Cant_have_multiple_session_module")); } } internal static void RemoveHttpSessionStateFromContext(HttpContext context, bool delayed) { if (delayed) { context.RemoveDelayedHttpSessionState(); } else { context.Items.Remove("AspSession"); } }

其中HttpContext的RemoveDelayedHttpSessionState就一句    this._sessionStateModule = null;我想对于SessionStateUtility里面的这几个方法我就不多说吧，很简单。

我们还是回头看看前面那2句吧，

public string GetSessionID(HttpContext context){ string id = null; this.CheckInitializeRequestCalled(context); if (this.UseCookieless(context)) { return (string) context.Items["AspCookielessSession"]; } HttpCookie cookie = context.Request.Cookies[Config.CookieName]; if ((cookie != null) && (cookie.Value != null)) { id = this.Decode(cookie.Value); if ((id != null) && !this.ValidateInternal(id, false)) { id = null; } } return id;}

默认情况下我们的cookie是可用的，这里的Config.CookieName实际上就是SessionStateSection的CookieName属性

[ConfigurationProperty("cookieName", DefaultValue="ASP.NET_SessionId")]public string CookieName{ get { return (string) base[_propCookieName]; } set { base[_propCookieName] = value; }}

到这里大家应该知道为什么Http请求和返回关于Session对应Cookie的id是ASP.NET_SessionId了吧。不过大家要注意一点这里的SessionIDManager 在操作cookie做了一些数据验证处理，如果在特殊情况需要自定义验证规则我们可以自己来实现ISessionIDManager接口。这里我们可以看到第一次请求是没有sessionid的，所以sessionStateItem = this.GetSessionStateItem();这句代码不会执行，sessionStateItem默认为true，但是第二次请求时有sessionid这句代码就会执行。GetSessionStateItem()的实现这里我们就忽略了吧，这个方法设置一个SessionStateStoreData的实例 this._rqItem ，如果 this._rqItem为null则返回false。一般我们的Session都是可读写的。GetSessionStateItem方法主要是调用  this._rqItem = this._store.GetItemExclusive(this._rqContext, this._rqId, out flag2, out span, out this._rqLockId, out this._rqActionFlags);

现在我们回到CompleteAcquireState方法中来：

  if (flag)
            {
                SessionStateUtility.AddDelayedHttpSessionStateToContext(this._rqContext, this);
                this._rqSessionState = s_delayedSessionState;
            }
            else
            {
                this.InitStateStoreItem(true); //SessionStateUtility.AddHttpSessionStateToContext(this._rqContext, this._rqSessionState);
            }

这里是flag默认是false，里面具体判断就不说，InitStateStoreItem方法主要代码：

if (this._rqItem == null)
            {
                this._rqItem = this._store.CreateNewStoreData(this._rqContext, s_timeout);
            }

this._rqSessionItems = this._rqItem.Items;

   this._rqSessionState = new HttpSessionStateContainer(this, this._rqId, this._rqSessionItems, this._rqStaticObjects, this._rqItem.Timeout, this._rqIsNewSession, s_configCookieless, s_configMode, this._rqReadonly);
            SessionStateUtility.AddHttpSessionStateToContext(this._rqContext, this._rqSessionState);

这里InProcSessionStateStore 的CreateNewStoreData方法实际就是调用SessionStateUtility.CreateLegitStoreData：

internal static SessionStateStoreData CreateLegitStoreData(HttpContext context, ISessionStateItemCollection sessionItems, HttpStaticObjectsCollection staticObjects, int timeout){ if (sessionItems == null) { sessionItems = new SessionStateItemCollection(); } if ((staticObjects == null) && (context != null)) { staticObjects = GetSessionStaticObjects(context); } return new SessionStateStoreData(sessionItems, staticObjects, timeout);}

其中SessionStateItemCollection的定义如下：

public sealed class SessionStateItemCollection : NameObjectCollectionBase, ISessionStateItemCollection, ICollection, IEnumerable

这里创建了一个  HttpSessionStateContainer实例。我想大家到这里就应该明白我们的Session实际上就是一个HttpSessionStateContainer实例。

好现在我来看 Session.SessionID这个是怎么实现的
public string SessionID
{
    get
    {
        if (this._id == null)
        {
            this._id = this._stateModule.DelayedGetSessionId();
        }
        return this._id;
    }
}

而SessionStateModule的DelayedGetSessionId方法实现如下：

internal string DelayedGetSessionId()
{
    this.ChangeImpersonation(this._rqContext, false);
    try
    {
        this._rqId = this._idManager.GetSessionID(this._rqContext);
        if (this._rqId == null)
        {
            this.CreateSessionId();
        }
    }
    finally
    {
        this.RestoreImpersonation();
    }
    return this._rqId;
}
这里的CreateSessionId具体是怎么创建我就不说了吧，知道它是真正创建sessionid的就可以。而session的实际操作都是在ISessionStateItemCollection里面如HttpSessionStateContainer的Add方法：

public void Add(string name, object value)
{
    this._sessionItems[name] = value;
}

而这里的_sessionItems实际上是this._rqItem.Items，本来想忽略_rqItem的创建，看来这个实例比较强啊。

 this._rqItem = this._store.GetItemExclusive(this._rqContext, this._rqId, out flag2, out span, out this._rqLockId, out this._rqActionFlags);
        if ((((this._rqItem == null) && !flag2) && (this._rqId != null)) && ((s_configCookieless != HttpCookieMode.UseUri) || !s_configRegenerateExpiredSessionId))
        {
            this.CreateUninitializedSessionState();
            this._rqItem = this._store.GetItemExclusive(this._rqContext, this._rqId, out flag2, out span, out this._rqLockId, out this._rqActionFlags);
        }

这里的CreateUninitializedSessionState方法实际就是调用this._store.CreateUninitializedItem(this._rqContext, this._rqId, s_timeout);

我们前面知道this._store这个可以取很多实例的，是SessionStateStoreProviderBase类型，这里我们也已默认的 InProcSessionStateStore（继承SessionStateStoreProviderBase）来说说吧，相关方法：

private SessionStateStoreData DoGet(HttpContext context, string id, bool exclusive, out bool locked, out TimeSpan lockAge, out object lockId, out SessionStateActions actionFlags)
{
    bool flag;
    string key = this.CreateSessionStateCacheKey(id);
    InProcSessionState state = (InProcSessionState) HttpRuntime.CacheInternal.Get(key);
    if (state == null)
    {
        return null;
    }
  ......
    return SessionStateUtility.CreateLegitStoreData(context, state._sessionItems, state._staticObjects, state._timeout);
}

public override void CreateUninitializedItem(HttpContext context, string id, int timeout)
{
    string key = this.CreateSessionStateCacheKey(id);
    SessionIDManager.CheckIdLength(id, true);
    InProcSessionState state = new InProcSessionState(null, null, timeout, false, DateTime.MinValue, NewLockCookie, 1);
    try
    {
    }
    finally
    {
        if (HttpRuntime.CacheInternal.UtcAdd(key, state, null, Cache.NoAbsoluteExpiration, new TimeSpan(0, timeout, 0), CacheItemPriority.NotRemovable, this._callback) == null)
        {
            PerfCounters.IncrementCounter(AppPerfCounter.SESSIONS_TOTAL);
            PerfCounters.IncrementCounter(AppPerfCounter.SESSIONS_ACTIVE);
        }
    }
}

现在我们终于明白一个Sessionid对应一个SessionStateStoreData，所以它能区分不同的用户请求，这里的id就是我们前面的this._rqId了。

现在我们也总结一下吧，我们的HttpContext的Session属性实际上是一个HttpSessionStateContainer实例（HttpSessionStateContainer继承IHttpSessionState），而它数据成员都是保存在ISessionStateItemCollection实例中，每一次http请求我们都会去获取它的Sessionid，第一次请求sessionid问null，我们没有对应的SessionStateStoreData数据，这时我们在SessionStateModule的 InitStateStoreItem方法调用SessionStateStoreProviderBase的CreateNewStoreData方法来创建一个SessionStateStoreData实例，其中该实例有一个成员变量类型是ISessionStateItemCollection用来保存用户session的数据。同一个用户第二次请求我们能获取到它的sessionid，默认也能获取到SessionStateStoreData实例（session过期则取不到）。一个用户对应一个SessionStateStoreData，每个SessionStateStoreData里面有一个ISessionStateItemCollection实例用来保存用户数据，至于sessionid也就是用户身份的区别依赖于ISessionIDManager的实现。
